One system.
79% less power.
Zero compromise.
단 하나의 시스템.
전력 79% 절감.
타협 없는 성능.
How the Klenair ONE AIR System resolved temperature and humidity instability at a plastics filtration laboratory in Kaohsiung — replacing four uncoordinated units with a single integrated solution. Klenair ONE AIR 시스템이 가오슝 소재 플라스틱 여과 실험실의 온도 및 습도 불안정 문제를 해결한 방법 — 분산된 네 개의 장비를 하나의 통합 솔루션으로 대체.
Energy Saved & Conditions Met 에너지 절감 및 목표 환경 조건 달성
8.0 kW → 1.7 kW · 23±2°C · 45±5% RH45±5% RH
Unpredictable Fluctuations to a Stable RH Range 불규칙한 변동에서 안정적인 습도 범위로
23–29°C Fluctuating → 23±2°C Stable 23–29°C 변동 → 23±2°C 안정Illustrative — based on documented operating conditions. Not measured telemetry. 예시 그래프 — 문서화된 운전 조건 기반. 실측 원격 데이터 아님.
Air supplied from ceiling centre — full room circulation. Blue = supply · Orange = return 천장 중앙에서 급기 — 실내 전체 순환. 파란색 = 급기 · 주황색 = 환기
- Multiple uncoordinated units operating independently다수의 독립 장비가 비협조적으로 각각 운전
- Non-uniform conditions — tables and lockers obstructing airflow불균일한 환경 조건 — 테이블과 로커가 기류 방해
- Heating-style dehumidifiers competing directly with cold air conditioner output가열식 제습기와 냉방 에어컨이 서로 상충
- No central coordination — each unit responded to local conditions only중앙 제어 없음 — 각 장비가 국부 조건에만 반응
- Single integrated system — temperature and humidity managed in coordination단일 통합 시스템 — 온도와 습도를 연동하여 제어
- Air distributed from ceiling centre, full room circulation achieved천장 중앙에서 급기, 실내 전체 순환 달성
- Heating-cooling conflict eliminated — fluctuation reduced to minimum냉난방 충돌 제거 — 변동폭 최소화
- Target conditions maintained consistently throughout the lab실험실 전체에 걸쳐 목표 조건 지속 유지
Key Takeaway 핵심 시사점
The instability was systemic, not equipment-related. Separate units responding independently to local conditions will always produce conflict. A coordinated system resolves this at the architecture level. 불안정의 원인은 개별 장비가 아닌 시스템 구조에 있었습니다. 각자 국부 조건에 반응하는 분산 장비는 필연적으로 충돌을 일으킵니다. 통합 제어 시스템은 이를 아키텍처 수준에서 근본적으로 해결합니다.
8.0 kW reduced to 1.7 kW 8.0 kW에서 1.7 kW로 감소
Total draw across all climate control units 모든 공조 장비의 총 소비 전력 합산From 8.0 kW to 1.7 kW — four units replaced by one 운전 1시간당 6.3 kW 절감
8.0 kW에서 1.7 kW로 — 4개 장비를 1개로 통합
- Wall-mounted air conditioner: ~6.0 kW벽걸이 에어컨: 약 6.0 kW
- 3 × floor-standing dehumidifiers: ~2.0 kW combined스탠드형 제습기 3대: 합산 약 2.0 kW
- Total: ~8.0 kW — uncoordinated operation합계: 약 8.0 kW — 비협조적 운전
- Klenair ONE AIR System: 1.7 kW totalKlenair ONE AIR 시스템: 총 1.7 kW
- Full temperature and humidity control in a single draw단일 소비 전력으로 온도·습도 완전 제어
- 79% reduction versus the previous installation기존 설비 대비 79% 절감
4 Units Consolidated Into 1 4개 장비를 1개로 통합
1 A/C + 3 Dehumidifiers VS 1 ONE Air System · Clear floor paths · Operational space reclaimed 에어컨 1대 + 제습기 3대 대 ONE AIR 시스템 1대 · 통로 확보 · 작업 공간 회수- Wall-mounted A/C with oversized footprint and clearance requirements과도한 설치 면적과 이격 거리가 필요한 벽걸이 에어컨
- 3 floor-standing dehumidifiers spread across the lab floor실험실 바닥 곳곳에 분산 배치된 스탠드형 제습기 3대
- Equipment blocking walking paths and restricting airflow통로 차단 및 기류 방해
- ONE AIR occupies approximately the same total footprint as all previous equipmentONE AIR 1대가 기존 전체 장비의 총 설치 면적과 유사한 공간 차지
- Single corner installation — floor paths fully clear모서리 단독 설치 — 통로 완전 확보
- Significant lab floor space freed for operational use실험실 바닥 공간 대폭 확보, 작업 활용 가능

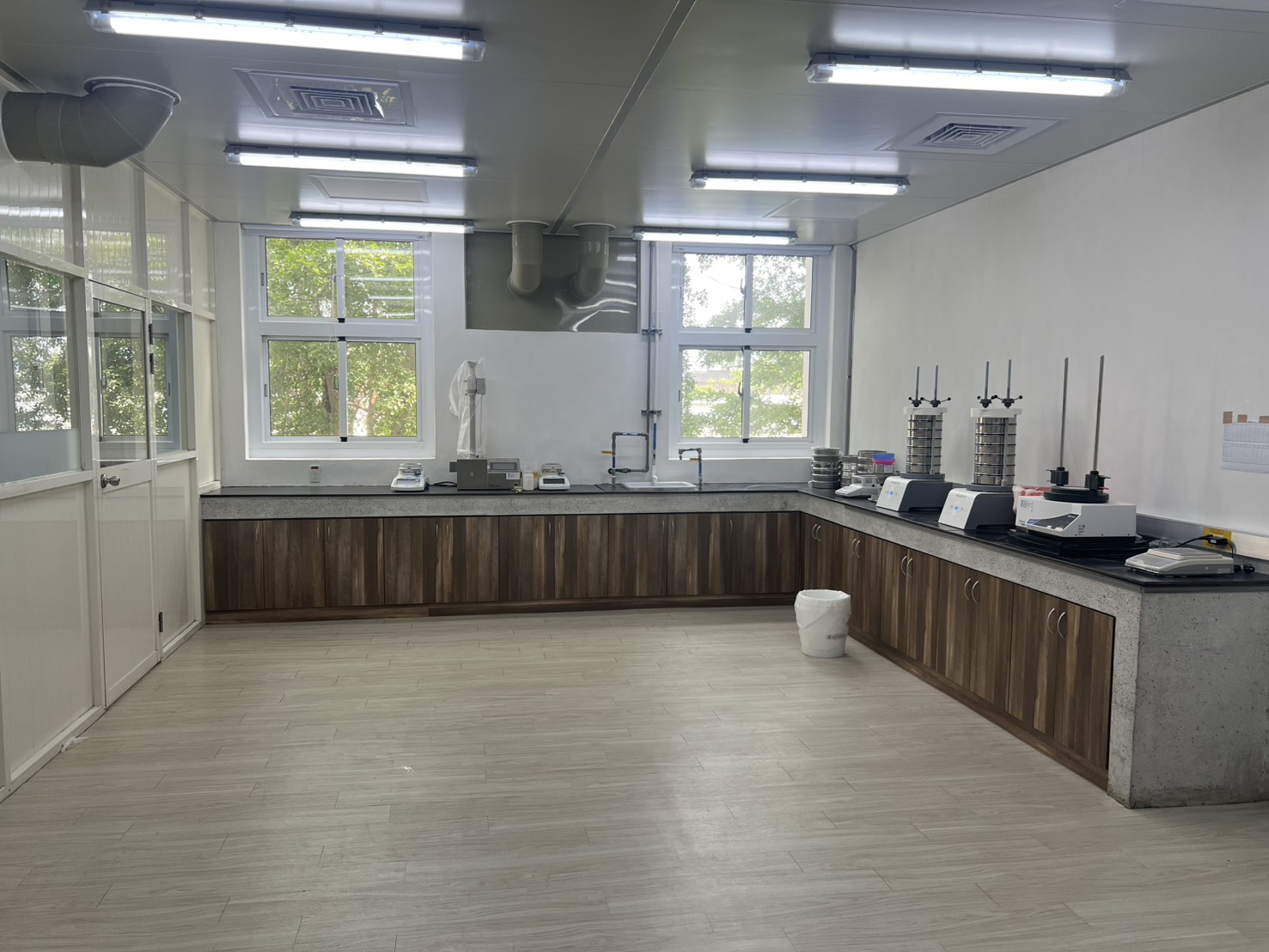

Replace src="" with your image path 사진 슬롯 1 — 도입 전 실내
src=""를 이미지 경로로 교체하세요
Excellent. Not only did it achieve the RH we needed, but it also reduced power consumption and the space occupied. 훌륭합니다. 필요한 습도 조건을 달성했을 뿐만 아니라, 전력 소비와 점유 공간까지 줄여주었습니다.
— Lab User · Formosa Plastics · Renwu, Kaohsiung — 실험실 사용자 · 포모사 플라스틱 · 대만 가오슝 런우구
